PARTS LIST

GT86 TRD PARTS (after minor change)
Part Name      Parts Number QTY Price Information Grade (Japan introduction models) Comments
G G GT GT Limited Limited Racing
List Price(JPY)  MT AT MT AT MT AT MT
ZN6-E2B8 ZN6-E2B7 ZN6-E2E8 ZN6-E2E7 ZN6-E2L8 ZN6-E2L7 ZN6-E288
Front Spoiler with LED
MS341-18004-A1 1 80,000 color: K1X (White pearl)
MS341-18004-C0 1 80,000 color: D4S (Black)
MS341-18004-D1 1 80,000 color: M7Y (Red)
MS341-18004-E0 1 80,000 color: H8R (Orange)
MS341-18005-NP 1 76,000 Non painted
Front Spoiler without  LED
MS341-18006-A1 1 46,000 color: K1X (White pearl)
MS341-18006-C0 1 46,000 color: D4S (Black)
MS341-18006-D1 1 46,000 color: M7Y (Red)
MS341-18006-E0 1 46,000 color: H8R (Orange)
MS341-18007-NP 1 42,000 Non painted
Side Skirts
MS344-18004-A1 1 48,000 color: K1X (White pearl)
MS344-18004-C0 1 48,000 color: D4S (Black)
MS344-18004-D1 1 48,000 color: M7Y (Red)
MS344-18004-E0 1 48,000 color: H8R (Orange)
MS344-18005-NP 1 44,000 Non painted
High Response Muffler Ver.R (exclusively for after minor change) MS153-18004 1 120,000 〇*3 〇*3 〇*3 〇*3 〇*3 〇*3 〇*3 *3 Install Rear bumper spoiler or Muffler garnish simultaneously.
Rear Bumper Spoiler
MS313-18001-A1 1 54,000 〇*1 〇*1 〇*1 〇*1 〇*1 〇*1 〇*1 *1 Install TRD muffler simultaneously, but will not fit with corner sensor
MS313-18001-C0 1 54,000 〇*1 〇*1 〇*1 〇*1 〇*1 〇*1 〇*1 *1 Install TRD muffler simultaneously, but will not fit with corner sensor
MS313-18001-D1 1 54,000 〇*1 〇*1 〇*1 〇*1 〇*1 〇*1 〇*1 *1 Install TRD muffler simultaneously, but will not fit with corner sensor
MS313-18001-E0 1 54,000 〇*1 〇*1 〇*1 〇*1 〇*1 〇*1 〇*1 *1 Install TRD muffler simultaneously, but will not fit with corner sensor
MS313-18002-NP 1 50,000 〇*1 〇*1 〇*1 〇*1 〇*1 〇*1 〇*1 *1 Install TRD muffler simultaneously, but will not fit with corner sensor
Muffler Garnish

MS313-18003 1 15,000 〇*3 〇*3 〇*3 〇*3 〇*3 〇*3 〇*3 *3 Install with TRD muffler simultainously
Rear Trunk Spoiler
MS342-18001-A1 1 32,000 color: K1X (White pearl)
MS342-18001-C0 1 32,000 color: D4S (Black)
MS342-18001-D1 1 32,000 color: M7Y (Red)
MS342-18001-E0 1 32,000 color: H8R (Orange)
MS342-18002-00 1 28,000 Non painted
Front Fender Aero Fin (CFRP)
MS345-18001 1 Discontinued
Colored Front Fender Aero Fin
MS345-18002-A1 1 24,000 color: K1X (White pearl)
MS345-18002-C0 1 24,000 color: D4S (Black)
MS345-18002-D1 1 24,000 color: M7Y (Red)
MS345-18002-E0 1 24,000 color: H8R (Orange)
MS345-18003-NP 1 20,000 Non painted
Aero Turbulator
MS319-18001 1 18,000 〇*2 〇*2 〇*2 〇*2 〇*2 〇*2 〇*2 *2 Incompatible to install with Fender Extension (MS315-18004/5)
Side Stabilizing Cover
MS316-18001 1 28,000
Rear Window Louver
MS317-18001 1 90,000 〇*7 〇*7 〇*7 〇*7 〇*7 〇*7 〇*7 *7 Incompatible to install with Aero Stabilizing Cover (MS346-18001)


Part Name      Parts Number QTY Price Information Grade (Japan introduction models) Comments
G G GT GT Limited Limited Racing
List Price(JPY)  MT AT MT AT MT AT MT
ZN6-E2B8 ZN6-E2B7 ZN6-E2E8 ZN6-E2E7 ZN6-E2L8 ZN6-E2L7 ZN6-E288
Aero Stabilizing Cover
MS346-18001 1 16,000 〇*8 〇*8 〇*8 〇*8 〇*8 〇*8 〇*8 *8 Incompatible to install with Rear Window Louver (MS317-18001)
Fender Extension
MS315-18004-A1 1 46,000 〇*2 〇*2 〇*2 〇*2 〇*2 〇*2 〇*2 *2 Incompatible to install with Aero Aero Turbulator (MS319-18001)
MS315-18004-C0 1 46,000 〇*2 〇*2 〇*2 〇*2 〇*2 〇*2 〇*2 *2 Incompatible to install with Aero Aero Turbulator (MS319-18001)
MS315-18004-D1 1 46,000 〇*2 〇*2 〇*2 〇*2 〇*2 〇*2 〇*2 *2 Incompatible to install with Aero Aero Turbulator (MS319-18001)
MS315-18004-E0 1 46,000 〇*2 〇*2 〇*2 〇*2 〇*2 〇*2 〇*2 *2 Incompatible to install with Aero Aero Turbulator (MS319-18001)
MS315-18005-NP 1 42,000 〇*2 〇*2 〇*2 〇*2 〇*2 〇*2 〇*2 *2 Incompatible to install with Aero Aero Turbulator (MS319-18001)
GT WING
MS342-18006 1 360,000
Rear Side Spoiler
MS315-18002-A1 1 14,000
MS315-18002-C0 1 14,000
MS315-18002-D1 1 14,000
MS315-18002-E0 1 14,000
MS315-18003-NP 1 10,000
Shift Knob(MT)
MS204-18001 1 10,000 × × ×
Shift Knob(AT)
MS204-18002 1 10,000 × × × ×
Knee Pad

MS354-18001 1 18,000 ○*6 ○*6 ○*6 ○*6 ○*6 ○*6 ○*6 *6 Incompatible to install with Sports seat and Full bucket seat.
Knee Pad Spacer
MS354-18002 1 9,000 ○*6 ○*6 ○*6 ○*6 ○*6 ○*6 ○*6 *6 Incompatible to install with Sports seat and Full bucket seat.
Motion Control Beam
MS303-18001 1 80,000
Full-length Ride
Adjustment Suspension Set
MS290-18001 1 380,000 Newly developed suspension kit
Front Strut Tower Bar
MS324-18001 1 28,000
Member Brace Set
MS300-18001 1 56,000 ○※5 ○※5 ○※5 ○※5 ○※5 ○※5 ○※5 ※ Incompatible to install with Flexible Road Stefner
Monoblock Brake Kit

MS220-18004 1 500,000
Circuit Brake Kit
MS220-18002 1 100,000 × ×

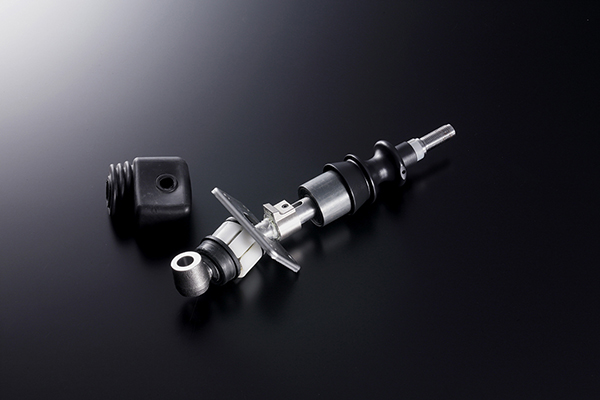

Quick Shift Lever

MS205-18001 1 38,000 × × ×


Part Name      Parts Number QTY Price Information Grade (Japan introduction models) Comments
G G GT GT Limited Limited Racing
List Price(JPY)  MT AT MT AT MT AT MT
ZN6-E2B8 ZN6-E2B7 ZN6-E2E8 ZN6-E2E7 ZN6-E2L8 ZN6-E2L7 ZN6-E288
Tire Air Presser gage
MS217-00001 1 28,000 Install simultainously with 18 inch alloy wheel TRD SF3 or TRD TF6
Licence Number Rock Bolt

MS010-00017 1 4,000
Door Handle Protector
MS010-00018 1 3,000
Flexisible Road Stefner
MS306-18001 1 56,000 〇※4 〇※4 〇※4 〇※4 〇※4 〇※4 〇※4 ※4 Incompatible to install with Member brace set
Door Stabilizer
MS304-00001 1 15,000 Door Stabilizer® is registered trademarks of AISIN CORPORATION.

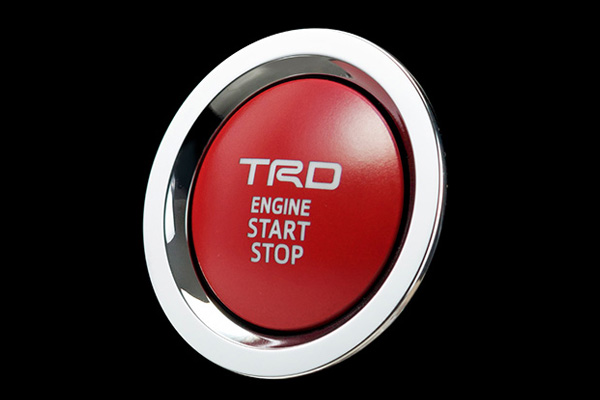

Push Start Switch
MS422-00003 1 14,000
Lug Nut Set
MS212-00004 1 20,000

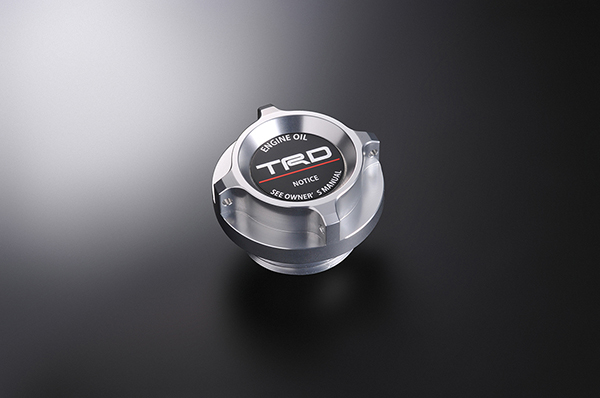

Oil Filler Cap
MS112-18001 1 10,000
Sport Oil Filter
MS500-18001 1 3,000
Sound Changer  (3 different sound changer in 1 set)
MS162-18001 1 2,800
Fuel Cap Garnish
MS010-00015 1 1,000

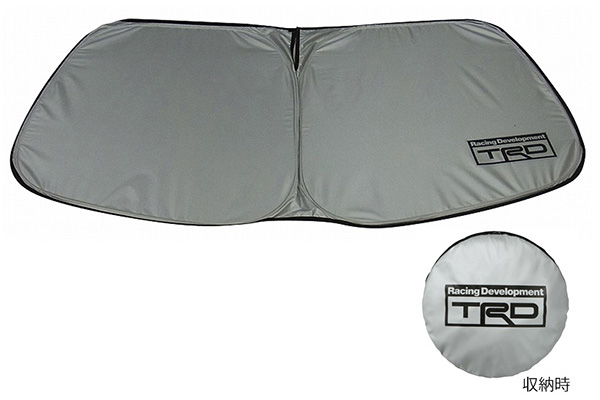

Sun Shade
MS010-18000 1 7,600
Shock Absorber Set
MS260-18002 1 54,000
Coil Spring Set
MS250-18002 1 36,000
Brake Pad(Front)
MS225-18001 1 15,000
Brake Pad(Rear 16inch)
MS226-18001 1 13,000 × ×
Brake Pad(Rear 15inch)
MS226-18002 1 13,000 × × × × ×
18 inch Aluminum Wheel SF3
(Forged)
MS213-00093 4 82,000 TPMS compatible
Color: Champagne gold
18 inch Aluminum Wheel 'TF6'
MS213-00043 4 38,000


◆DISCONTINUED PARTS
Part Name Parts Number
Door Stabilizer (Left/right 2 pc set) MS304-18001
