COLOR VARIATIONS

083 White Nova Glass Flake "For F SPORT only"

1J7 Sonic Titanium

223 Graphite Black Glass Flake

Angle

FRONT
REAR

Color images

is4
is5
is6

*This image is as of November 2020.

PARTS INTRODUCTION

EXTERIOR

Wing-like aero parts that brings stability and smoothness to
high-speed cruising with superior aerodynamic performance.

Front Spoiler

MaterialResin(PPE)
Ground ClearanceApprox. 49mm lowered
  • * The spoilers are confirmed that the pop-up action of the engine hood functions properly.

Aerodynamics Mirror Cover

ColorBlack(212)
MaterialResin(ABS)

Side Skirts

MaterialResin(PPE)
Ground ClearanceApprox. 56mm lowered
  • *A genuine jack cannot be used.

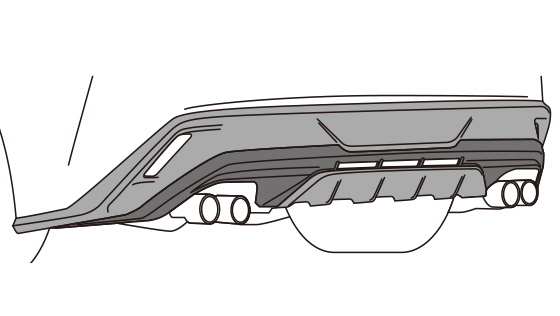

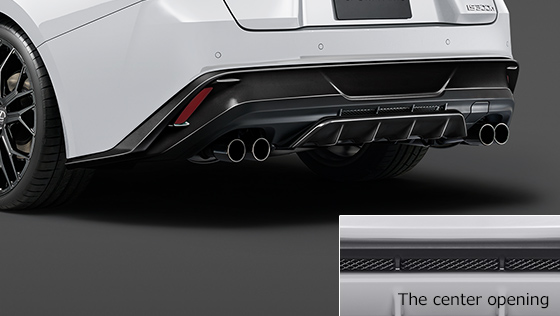

Sports Muffler & Rear Diffuser

MaterialRear diffuser/Resin(PPE&AES)
Sports muffler/Stainless steel
Size(Sports Muffler)Tale end/φ76mm
LengthApprox. 22mm longer
Ground ClearanceApprox. 34mm lowered
  • *The sports muffler and diffuser must be mounted together.

CHASSIS & DRIVETRAIN

Brace that is balanced with high driving performance and flexible ride comfort.
Performance Damper® combining high responsiveness handling and smooth ride comfort.
Forged aluminum wheel balanced at the highest level with light weight and high rigidity.

20inch Forged Alloy Wheel

20inch forged alloy wheels realize a "YET" Philosophy- inch-up and weight reduction.

MaterialAluminum forging (1 piece)
ColorMelanite Gun Metallic
SizeFR 20×8.5J inset45
RR 20×9.5J inset55
WeightFR 12.1 kg, RR 12.6 kg (per 1pc)
  • * Product does not include wheel center cap and TPWS valve.
    For installation, a genuine wheel cap "F SPORT" and TPWS valve are required separately.It is possible to use a standard installation TPWS valve, and in the case of "F SPORT", a standard installation wheel center cap can also be used.
  • *This product does not include tires.A separate tire (recommended size: FR 225 / 35R20 RR 265/30R20) is required.

Performance Damper®

It improves the comfortable of driving with reducing the noise and vibration during driving. And also, Improving the steering stability during high speed range.

  • * Performance Damper® is registered trademarks of Yamaha Motor Co., Ltd.

Member Brace

Comfortable ride with stable road holding performance can be achieved
by reinforcing the body floor area from front to back.
This product enables the suspension to directly absorb any input from the ground.

Materialsteel
Ground ClearanceApprox. 10mm lowered

PARTS LIST
